Hdpe Infrared Lens,Pir Sensor Fresnel Lens,Infrared Pir Sensor For Humanbody Infrared Detection Model 8002-2

Hdpe Infrared Lens,Pir Sensor Fresnel Lens,Infrared Pir Sensor For Humanbody Infrared Detection Model 8002-2
Hdpe Infrared Lens,Pir Sensor Fresnel Lens,Infrared Pir Sensor For Humanbody Infrared Detection Model 8002-2 Hdpe Infrared Lens,Pir Sensor Fresnel Lens,Infrared Pir Sensor For Humanbody Infrared Detection Model 8002-2 Hdpe Infrared Lens,Pir Sensor Fresnel Lens,Infrared Pir Sensor For Humanbody Infrared Detection Model 8002-2 Hdpe Infrared Lens,Pir Sensor Fresnel Lens,Infrared Pir Sensor For Humanbody Infrared Detection Model 8002-2 Hdpe Infrared Lens,Pir Sensor Fresnel Lens,Infrared Pir Sensor For Humanbody Infrared Detection Model 8002-2

Large Image :  Hdpe Infrared Lens,Pir Sensor Fresnel Lens,Infrared Pir Sensor For Humanbody Infrared Detection Model 8002-2

Product Details:
Place of Origin: Shenzhen,China
Brand Name: Meiying Optics
Certification: ISO/Rohs/SGS
Model Number: 8002-2
Payment & Shipping Terms:
Minimum Order Quantity: 100 piece
Price: USD+0.10-0.15+Piece
Packaging Details: 1000 pcs in one PE bag,the outer packing is carton box,fill in PE foam in carton box.
Delivery Time: Shipped within 7 days after payment
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability: 10000000+Piece+Month
Contact Now

Hdpe Infrared Lens,Pir Sensor Fresnel Lens,Infrared Pir Sensor For Humanbody Infrared Detection Model 8002-2

Description
Product Name: Pir Fresnel Lens Application: For Humanbody Infrared Detection
Model: 8002-2 Material: HDPE

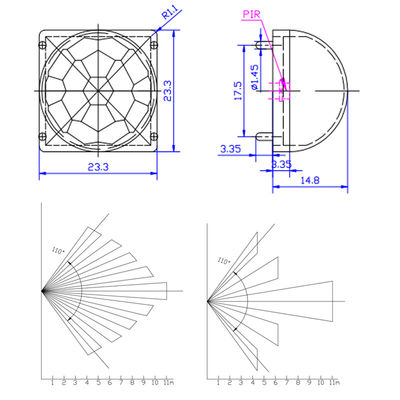

Size: 23.3*23.3*14.8mm Focal Length: 10.5mm
Induction Angle: 110° Induction Distance: 11M

Hdpe Infrared Lens,Pir Sensor Fresnel Lens,Infrared Pir Sensor For Humanbody Infrared Detection Model 8002-2



Product name  Pir fresnel lens
Model 8002-2
Material  HDPE
Size 23.3*23.3*14.8mm
Material HDPE
Focal length 10.5mm
Induction angle 110°
Induction distance 11M



Hdpe Infrared Lens,Pir Sensor Fresnel Lens,Infrared Pir Sensor For Humanbody Infrared Detection Model 8002-2 0

Hdpe Infrared Lens,Pir Sensor Fresnel Lens,Infrared Pir Sensor For Humanbody Infrared Detection Model 8002-2 1

Hdpe Infrared Lens,Pir Sensor Fresnel Lens,Infrared Pir Sensor For Humanbody Infrared Detection Model 8002-2 2

Hdpe Infrared Lens,Pir Sensor Fresnel Lens,Infrared Pir Sensor For Humanbody Infrared Detection Model 8002-2 3

Hdpe Infrared Lens,Pir Sensor Fresnel Lens,Infrared Pir Sensor For Humanbody Infrared Detection Model 8002-2 4

Hdpe Infrared Lens,Pir Sensor Fresnel Lens,Infrared Pir Sensor For Humanbody Infrared Detection Model 8002-2 5

Hdpe Infrared Lens,Pir Sensor Fresnel Lens,Infrared Pir Sensor For Humanbody Infrared Detection Model 8002-2 6

Hdpe Infrared Lens,Pir Sensor Fresnel Lens,Infrared Pir Sensor For Humanbody Infrared Detection Model 8002-2 7
